Overview

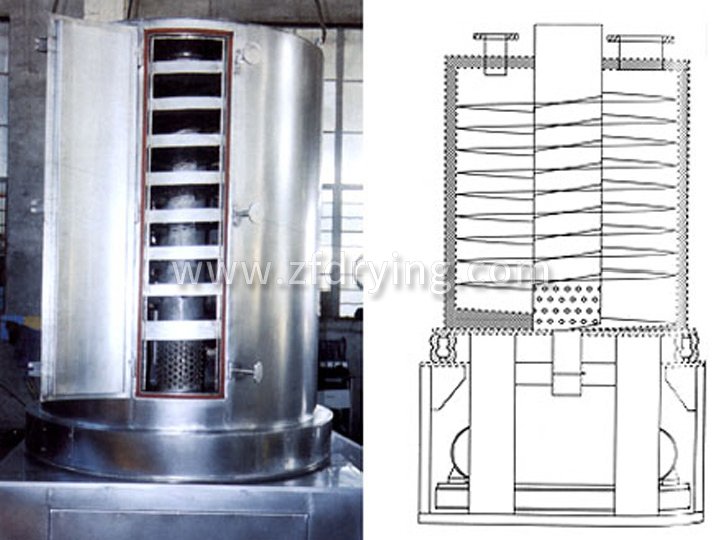

The wet material enters the spiral bed from the top feeding port, and under the action of circumferential excitation force and gravity, the material jumps along the spiral bed from top to bottom until the bottom layer; At the same time, clean hot air enters from the bottom of the spiral bed, undergoes sufficient heat and mass transfer with the materials distributed on the bed, and is discharged through the top moisture discharge port. Thus, the material achieves the purpose of drying.
Product Application
This drying equipment product is mainly suitable for drying traditional Chinese medicine pills; It can also be applied to the drying of granular, short strip, and spherical materials in industries such as chemical, chemical, food, plastic, building materials, and feed.
main features
The hot air passes through the material layer multiple times and flows in reverse with the material, allowing for sufficient heat exchange and high thermal efficiency.
Compact structure and small footprint.
The retention time of materials in the bed can be adjusted, making it easy to operate.
When the material moves in a circular motion along the spiral bed from bottom to top, it also jumps, thereby increasing the contact between the material and the hot air and enhancing the drying effect.
Continuous feeding and discharging is suitable for assembly line operation and easily meets the "GMP" standard, which can replace traditional box drying.
There is basically no damage to the surface and shape of the material, which not only ensures the roundness of the pills, but also greatly reduces the crushing rate of the pills.
Technical specifications
|
model
|
LZG-1.0
|
LZG-1.2
|
LZG-1.4
|
LZG-1.6
|
LZG-1.8
|
|
diameter (mm)
|
1000
|
1200
|
1400
|
1600
|
1800
|
|
Vibration motor power (kw)
|
2×1.1
|
2×1.1
|
2×1.5
|
2×1.5
|
2×2.2
|
|
Overall dimensions(m)
|
1.2×1.2×2.7
|
1.4×1.4×2.7
|
1.6×1.6×3.3
|
1.8×1.8×3.3
|
2.0×2.0×3.3
|
|
weight (kg)
|
1400
|
1680
|
2800
|
3100
|
3800
|
|
inlet air temperature (℃)
|
60-200
|
60-200
|
60-200
|
60-200
|
60-200
|
|
Air volume（m3/h)
|
1487
|
2380
|
3721
|
4462
|
5930
|
