Low temperature dryer

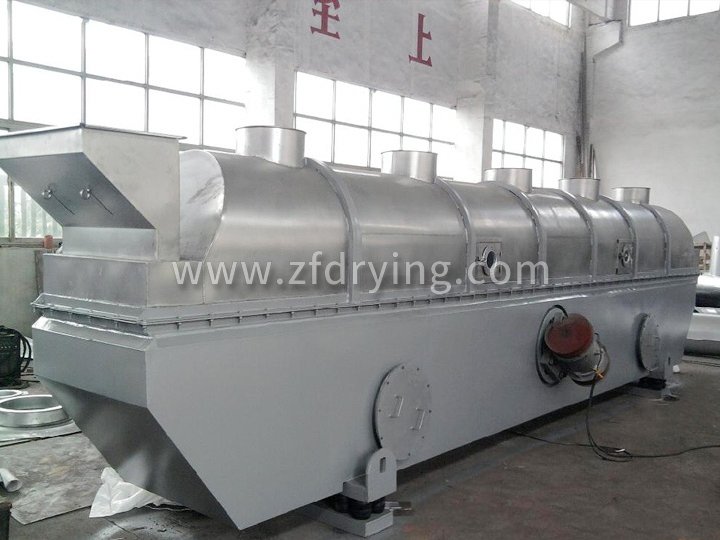

GZQ series vibrating fluidized bed dryer


Working principle

The material enters the machine from the feed inlet, and under the action of vibration, it is thrown along the horizontal fluidized bed and continuously moves forward. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air is removed by the cyclone separator and discharged by the exhaust air 1:3. The dry material is discharged from the discharge inlet.

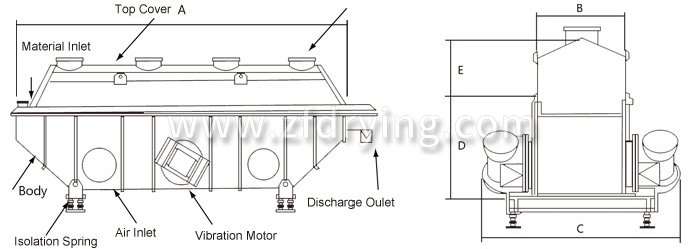

Structure diagram

振动流化床干燥机

Adapt to materials

Suitable for drying, cooling and other operations of powdered and granular materials in industries such as chemical, pharmaceutical, food, dehydrated vegetables, grains, minerals, etc. For example: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, pineapple, silk, soybean meal, distiller's grains, seeds, slag, sugar, etc.

Performance characteristics

The vibration source is driven by a vibration motor, with smooth operation, convenient maintenance, low noise, and long service life.

Homogeneous fluidization, without dead spaces or blowing through phenomena, can achieve uniform drying and cooling of the product.

Good adjustability and wide applicability. The thickness of the material layer, the speed of movement inside the machine, and the full amplitude change can be adjusted steplessly.

Small damage to the surface of the material. It can be used for drying fragile materials, and irregular material particles do not affect the working effect.

Adopting a fully enclosed structure, it effectively prevents cross infection between materials and air, and the working environment is clean.

High mechanical and thermal efficiency, good energy-saving effect, and can save 30-60% energy compared to general drying devices.

Technical specifications


Size/Model A B C D E F Weight (kg)
GZQ3×0.30 3000 300 1350 900 430 1650 1250
GZQ4.5×0.30 4500 300 1350 900 430 1650 1250
GZQ4.5×0.45 4500 450 1550 950 430 1700 1670
GZQ4.5×0.60 4500 600 1650 950 430 1700 1670
GZQ6×0.45 6000 450 1650 950 430 1700 2100
GZQ6×0.60 6000 600 1700 1000 500 1700 2410
GZQ6×0.75 6000 750 1850 1000 600 1850 2840
GZQ6×0.9 6000 900 2000 1000 600 1850 3160
GZQ7.5×0.60 7500 600 1850 1000 600 1850 3200
GZQ7.5×0.75 7500 750 2000 1000 600 1850 3600
GZQ7.5×0.9 7500 900 2100 1000 600 1850 4140
GZQ7.5×1.2 7500 1200 2500 1150 800 2050 5190

model Fluidized bed area
(M2)

inlet ai

rtemperature(oC)

Air outlet

temperature(oC)

Water evaporation

capacity(kg)

VIBRATION MOTOR
model Power Kw
GZQ3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
GZQ4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2
GZQ4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2
GZQ4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2
GZQ6×0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5×2
GZQ6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2
GZQ6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2
GZQ6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2
GZQ7.5×0.60 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2
GZQ7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2
GZQ7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2
GZQ7.5×1.2 9 70-140 40-70 200-260 ZDS51-6 3.0×2

★The above evaporation capacity is the upper limit of evaporation capacity.
